Emporia Vue Gen3 · 3-Phase · India

See exactly where your electricity goes.

Live monitoring for your full 3-phase 415Y/240 V supply and up to 16 individual circuits — from your phone, to the second. Built for Indian LT connections.

Choose Your MonitorWhich model do I need?
LIVE · SAMPLE HOME
9.24kW total
updating every second · simulated data
−60 SECNOW
LOAD BY PHASE
R phase3.60 kW
Y phase2.49 kW
B phase3.14 kW
CIRCUITS
Living Room AC2.28 kW
Master B/R AC1.84 kW
Master B/R Geyser1.98 kW
Guest B/R AC1.42 kW
Water Pump0.75 kW
Fridge0.17 kW
Balance (unmonitored)0.81 kW
240 V · 3-Phase For large flats, homes and small commercials with LT lines
Ethernet + Wi-Fi Works in meter rooms and basements where Wi-Fi fails
₹0 subscription The app is free, permanently. Hardware is the only cost
Up to 20% saved You cannot manage what you don’t measure. Start a load study →

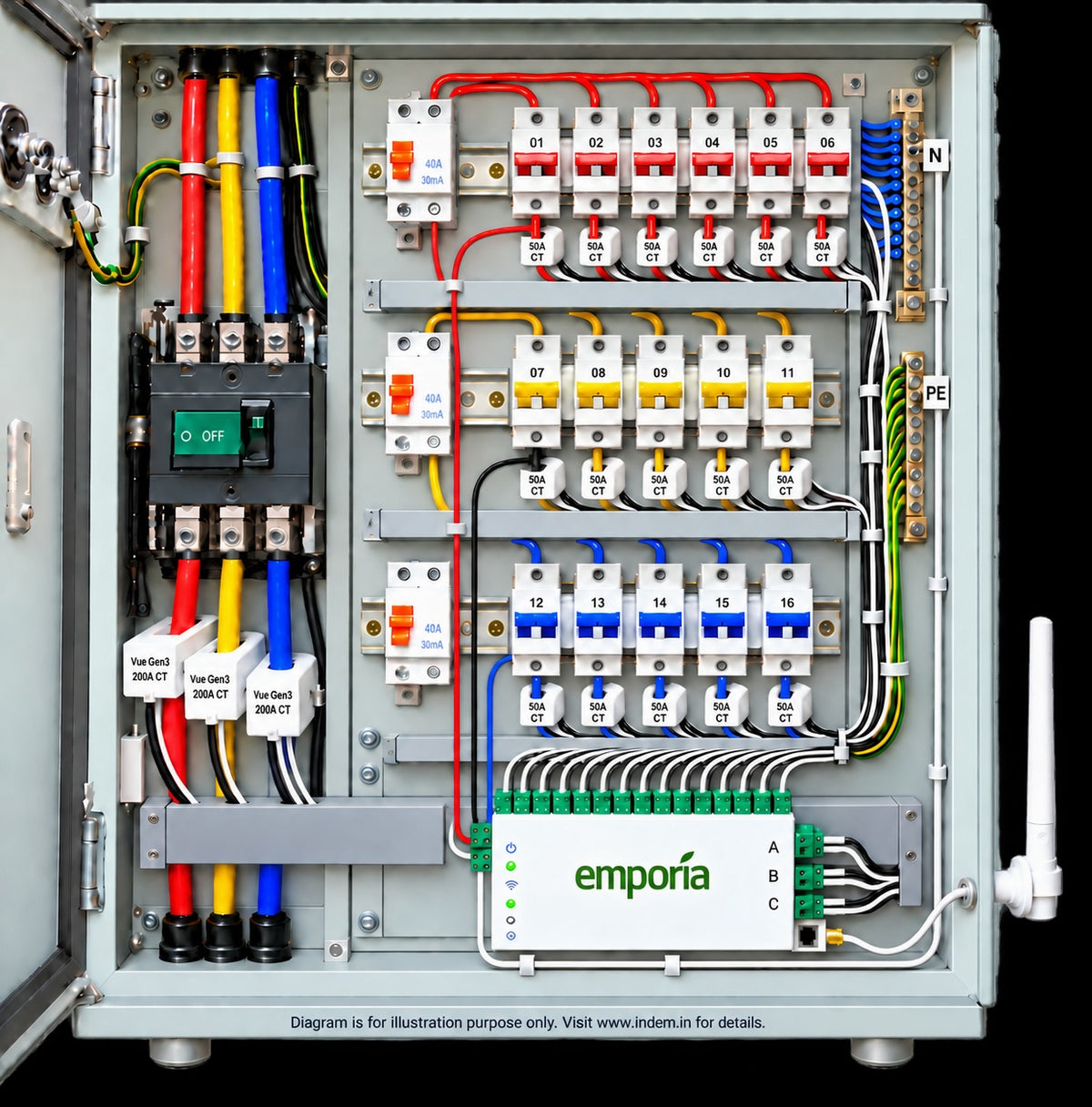

Vue Gen3 3-phase installation diagram — monitor and CT sensors inside the distribution board
The actual arrangement — monitor and clamp-on sensors inside your existing DP box
The hardware side

It lives quietly inside the board you already have.

  • No wire is cut. Split-core sensors hinge open and clamp around live conductors.
  • Fits your existing DP box — or a small enclosure beside it. Any make of MCB.
  • Your electrician fits it in 45–90 minutes. We support on WhatsApp during the fitting.
See the Installation PageWhich model do I need?

Who it is for

Three configurations. One monitor.

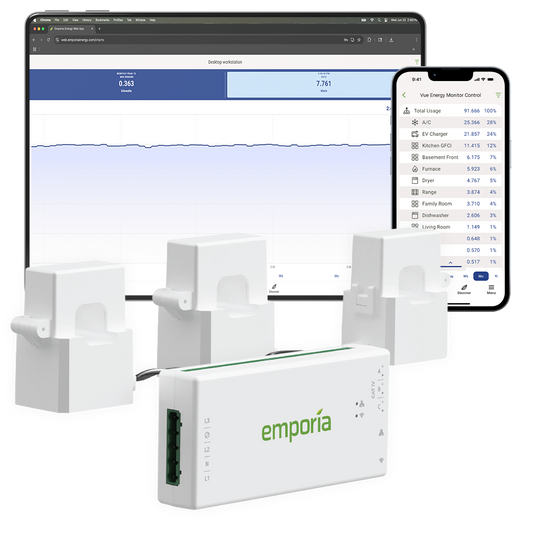

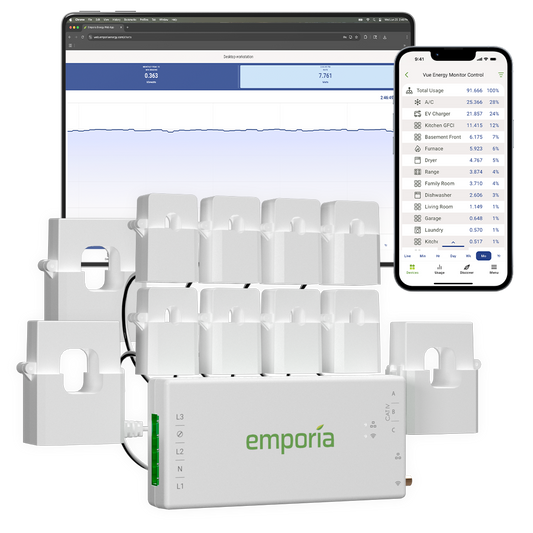

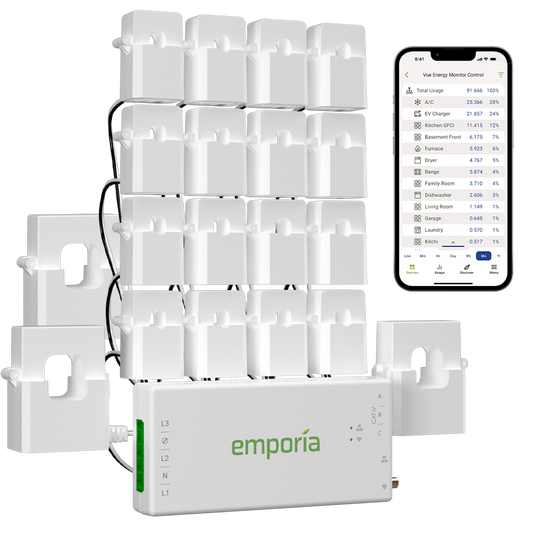

Emporia Vue Gen3 3-phase energy monitors for Indian 415Y/240 V supplies, up to 200 A per phase. Every model includes three 200 A phase sensors; they differ only in how many individual circuits you can separate.

From Indian owners

What people who installed one say

  • ★★★★★

    “Very pleased, we now know exactly the consumption from our Factory. My electrician fitted the unit and it was easy to set up the wifi connection. The reports are brilliant.”

    Vikas Kumar3-phase with 16 sensors · factory
  • ★★★★★

    “The 3 phase model with three input CTs is suitable for most installations in India. Good product quality, easy to install, easy to setup and gets up and running within an hour.”

    Jitendra Mahapatra3-phase with 16 sensors
  • ★★★★★

    “As an electrical consultant it was easy to install. Would not fit in DP Box, so had to mount a box for it to fit in. Works well and has helped me cut down on some energy usage. The app is good and easy to use.”

    NagarjunaElectrical consultant · 3-phase with 16 sensors

7 reviews · average 4.9/5 · previous-generation Vue owners, shown unedited. Same sensors, same app — Gen3 adds Ethernet.

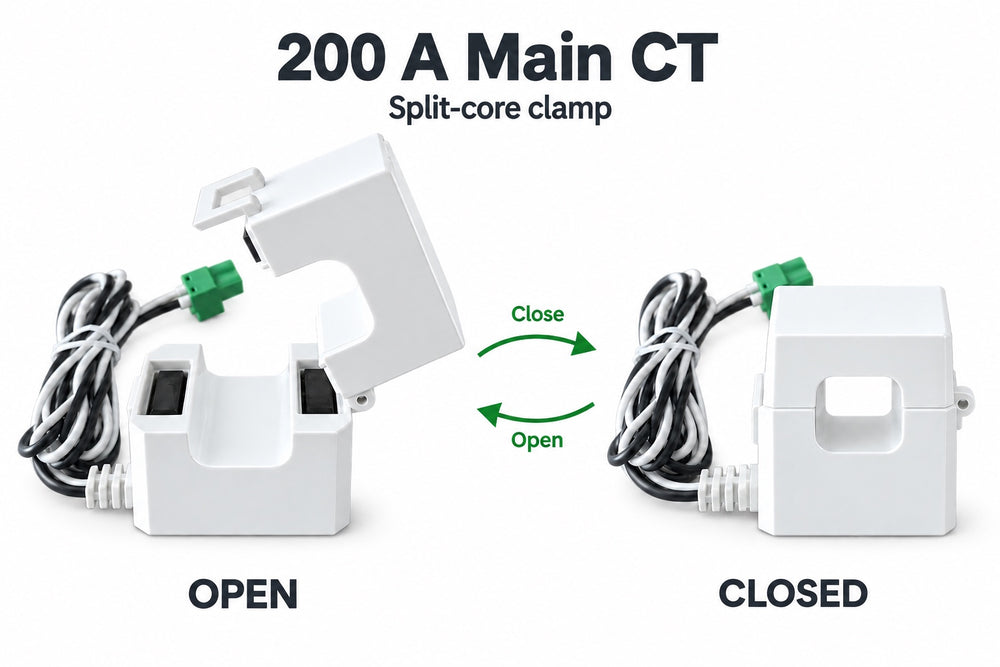

Split-core CT sensor — the hinged clamp opens and closes around a conductor, no wire cut
The split-core clamp — it hinges open and closes around the wire. Nothing is cut.
Installation · Engage a licensed electrician

Four steps. No wire is cut.

  1. Power itThe harness draws supply from inside the board — the one job for your electrician.
  2. Clamp the mainsThree 200 A clamps — one each on R, Y and B — into ports A, B, C.
  3. Clamp the branchesOne 50 A clamp per MCB you want to see — any make — into ports 1–16.
  4. See it liveName each circuit in the free app — and watch your board, to the second.

Before you buy: three things to check

Your supply must be “Y” (star) — 3-phase 4-wire with a neutral. Delta is not supported.
Each phase under 200 A — roughly 144 kVA on a 415 V supply.
It needs internet — 2.4 GHz Wi-Fi or Ethernet port.

Check the Full Specifications

Start here — send us your distribution box photo

Tell us what your distribution board feeds and roughly what you pay each month. We will tell you which model fits, how many sensors you need — and whether this is worth doing at all for your home or site. If it isn’t, we will say so.

WhatsApp Us Your Board Photo

Sold and supported in India by GenConnect

Authorised Emporia distributor and importer for India. Kolkata-based. GST invoice on every order. One-year warranty handled here, not overseas. Certified UL 61010 and UL 2808; EMC FCC, ISED, CE, PSE, UKCA. Not BIS certified — a monitoring device, not a billing meter.
