• Emporia Vue Gen3 200 A main CT sensor

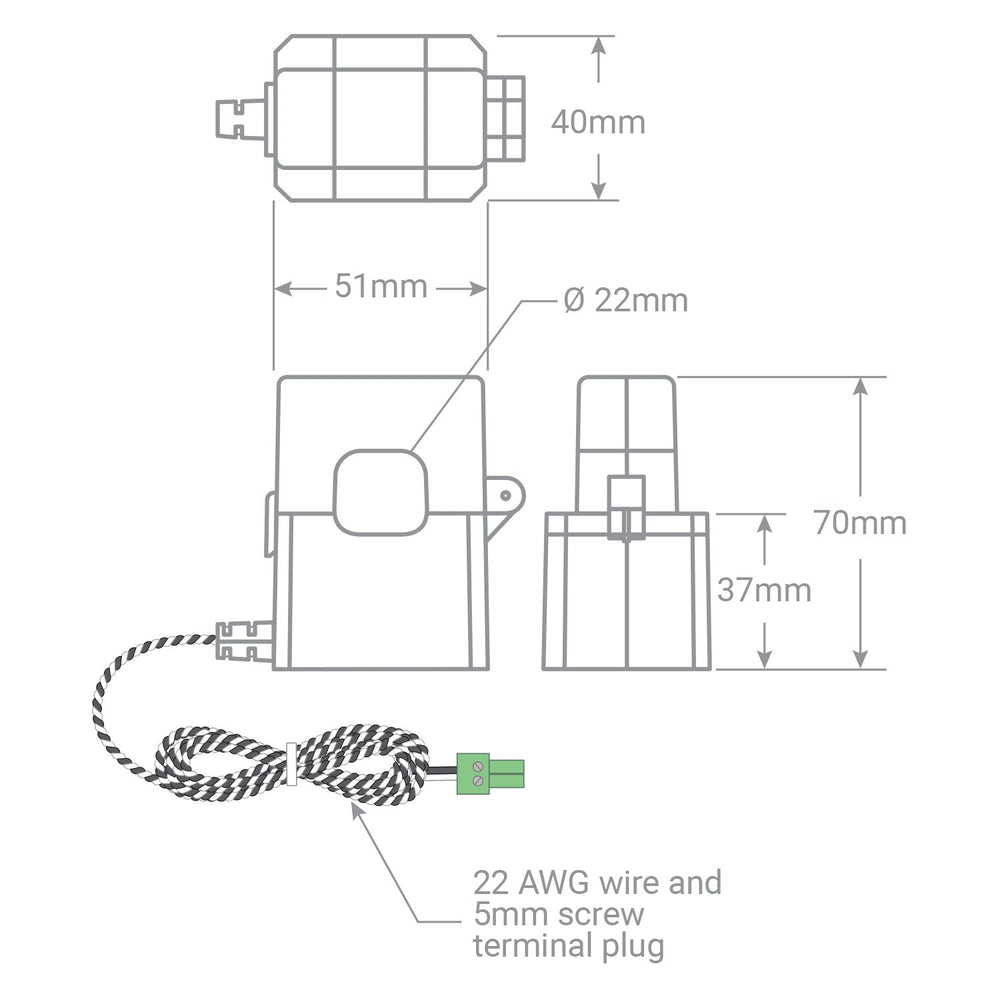

  • 200 A CT dimensioned drawing — 22 mm aperture
1 2

GenConnect

200 A Main CT Sensor — Vue Gen3

200 A Main CT Sensor — Vue Gen3

Rs. 2,540 excl. GST
Rs. 3,000.00 incl. GST
Rs. 3,000.00 incl. GST
Sale Out of Stock
Taxes included. Shipping calculated at checkout.

Spare or replacement main-phase sensor for the Vue Gen3. Clamps around a single incoming phase conductor and reports up to 200 A.

  • Aperture: 22 mm internal diameter — the conductor must pass through with its insulation
  • Body: 51 × 70 × 40 mm · split-core, clamps over the conductor without disconnecting it
  • Connection: 5 mm screw terminal plug, ports A/B/C · Measurement Category IV
  • Lead: ~1 m (40″), 22 AWG, easily shortened
  • Accuracy: ±2%

Gen3 monitors only. Screw-terminal connection — does not fit Gen1 or Gen2 monitors, which use 3.5 mm plug connectors. Never clamp around the neutral, and never pass two phases through one sensor.

GST invoice with every order. Sold and supported in India by GenConnect, Kolkata. WhatsApp +91 98310 37220.

View full details
