50 A Branch CT Sensor — Vue Gen3

Adds one individually monitored circuit to your Vue Gen3, up to the monitor's maximum of sixteen. Clamps around a branch conductor — no rewiring.

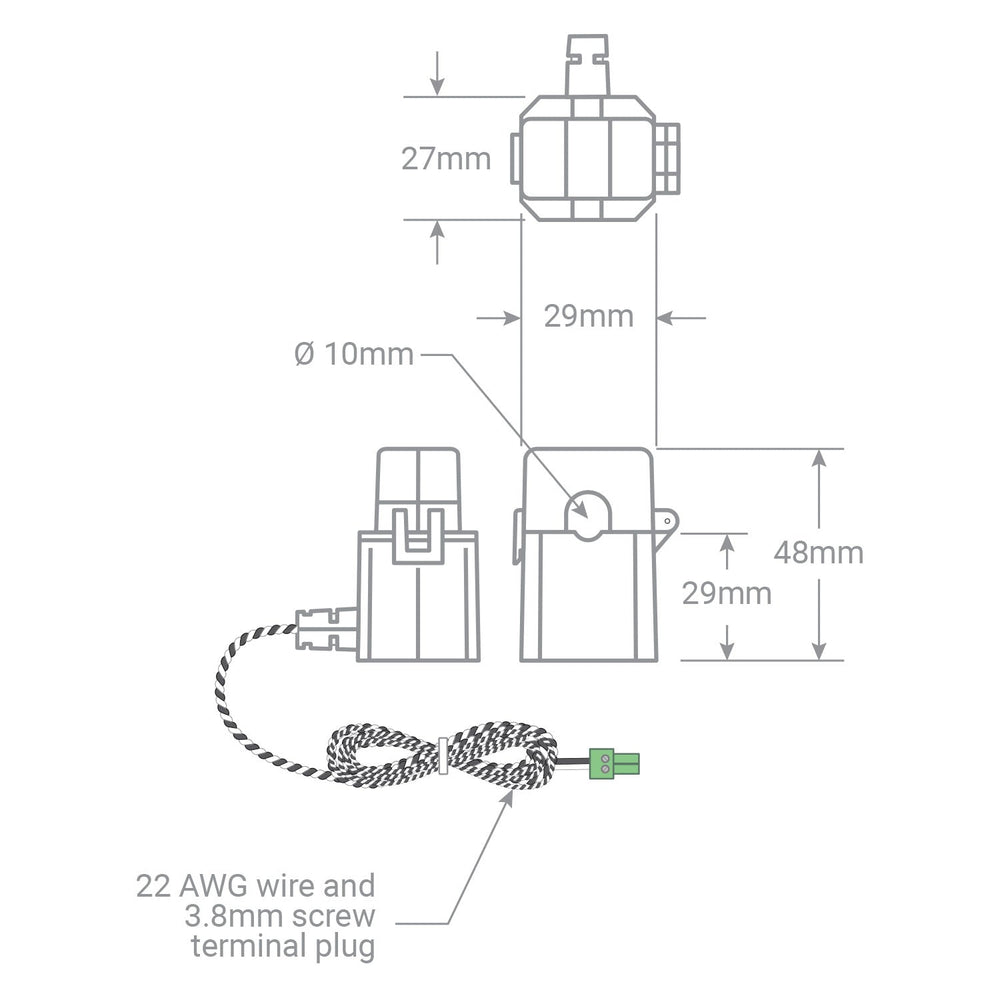

• Aperture: 10 mm internal diameter
• Body: 29 × 48 × 27 mm · split-core
• Connection: 3.8 mm screw terminal plug, numbered ports 1–16 · Measurement Category III
• Lead: ~1 m (40″), 22 AWG, easily shortened
• Accuracy: ±2%

Not for the main ports. 50 A sensors are branch-circuit sensors — never use them in the three 200 A main ports A/B/C. For circuits that can exceed 50 A, use a 200 A sensor instead.

Gen3 monitors only. Screw-terminal connection — does not fit Gen1 or Gen2 monitors, which use plug connectors.

Clamp the phase conductor only, never the neutral. Installation by a licensed electrician.

GST invoice with every order. Sold and supported in India by GenConnect, Kolkata. WhatsApp +91 98310 37220.
