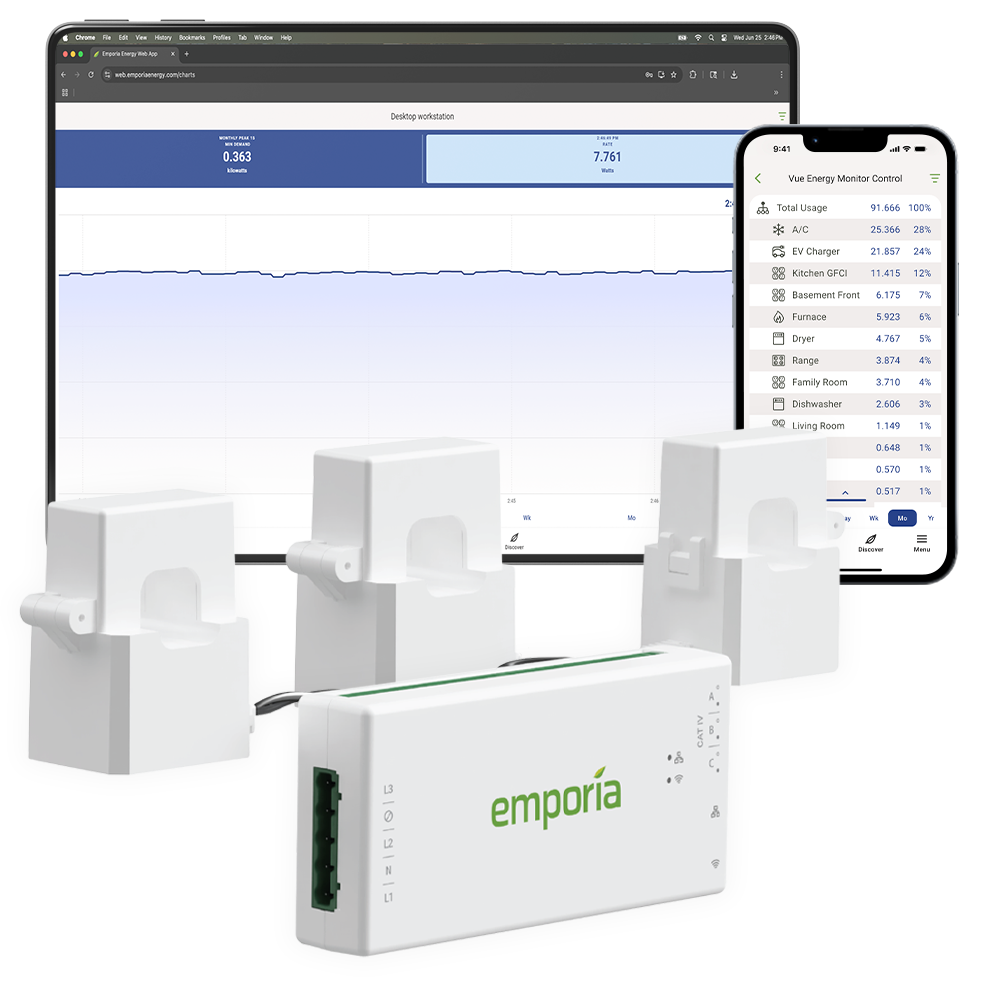

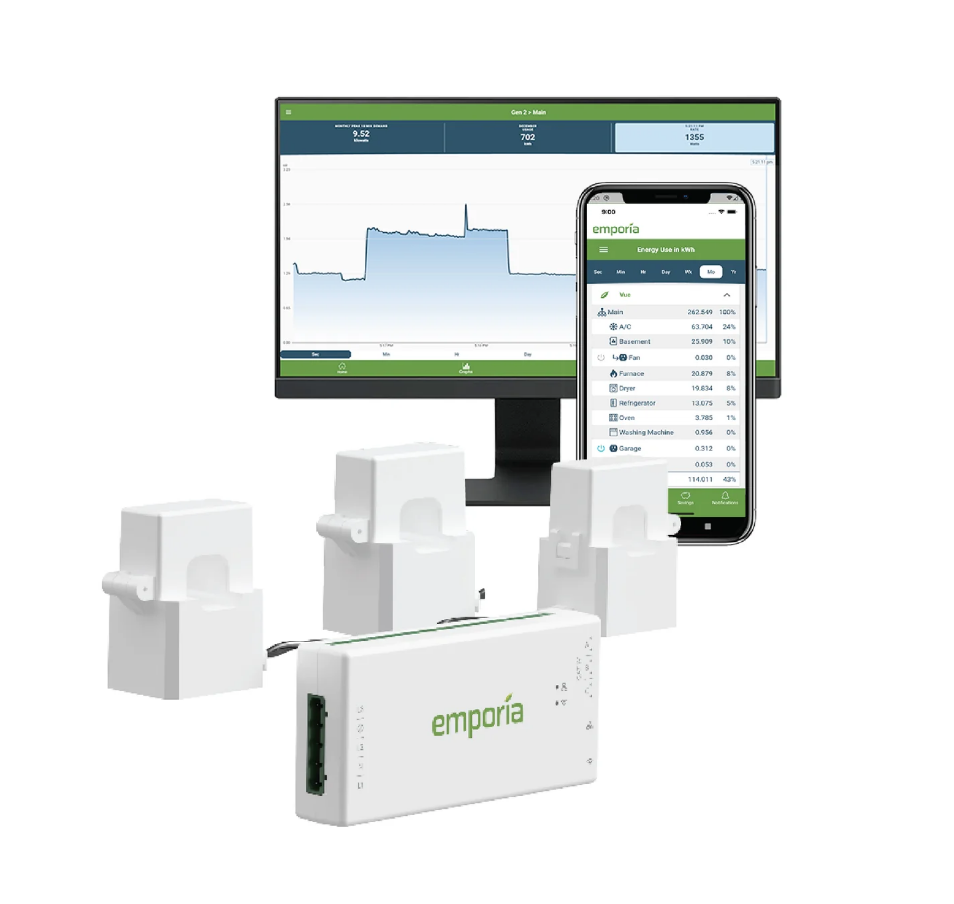

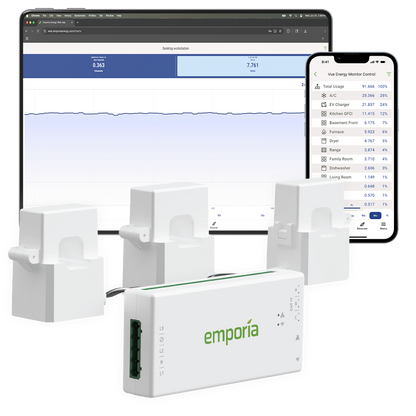

Whole-supply monitoring for a 3-phase 415Y/240 V connection. Three 200 A clamp-on sensors read each phase independently, to the second, with ±2% accuracy. Add up to 16 branch-circuit sensors later.
What this model does
This is the base configuration: your total consumption, phase by phase. Three 200 A CT sensors clamp around your incoming mains — no rewiring, no interruption of supply — and report continuously to the free Emporia app.
It answers: what is my real load right now, how balanced are my three phases, and what does my consumption curve actually look like across a day, a shift, a month.
It does not yet tell you which individual machine or circuit is responsible. For that, add 50 A branch sensors — as a bundle, or as accessories later. The monitor supports up to sixteen.
In the box
- Vue Gen3 energy monitor (EMV3-A)
- Three 200 A main CT sensors (22 mm aperture)
- 4-wire voltage-sense harness
- Wi-Fi antenna and cable
- Extra wire and wire nuts
- Quick-start guide and circuit labels
Not included: Ethernet cable, DIN-rail mounting screws (2 × M3 with lock washers).
Key specifications
- Supported supply: 3-phase 4-wire “Y” (star, TN/TT) up to 415Y/240 VAC · also single-phase and split-phase · Delta not supported
- Maximum per phase: 200 A (~144 kVA at 415 V)
- Accuracy: ±2% · 1-second live data
- Measurement category: CAT IV (200 A ports), CAT III (50 A ports)
- Network: Wi-Fi 2.4 GHz 802.11 b/g/n · Ethernet 10/100Base-T

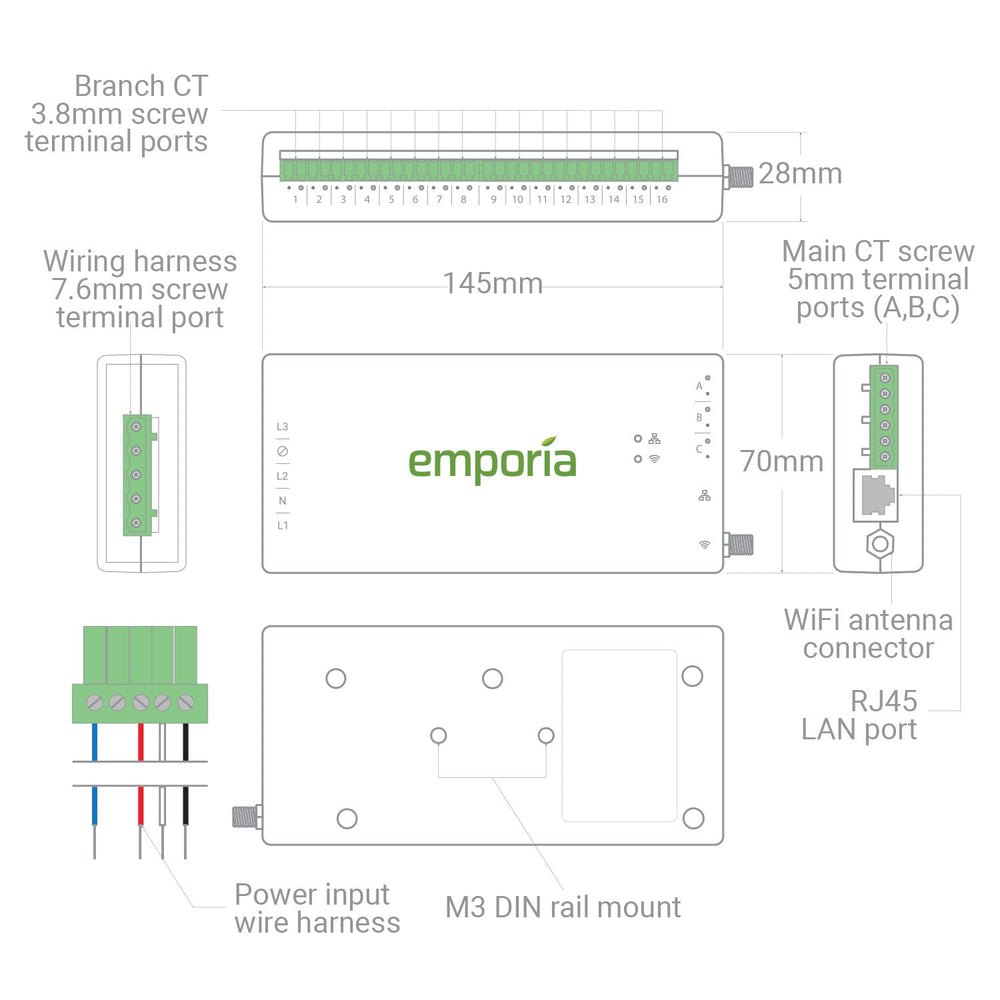

- Size: 145 × 70 × 28 mm, DIN-rail mountable
- Operating range: −40 °C to 50 °C · 0–80% RH · indoor, dry
- Certifications: Safety UL 61010, UL 2808 · EMC FCC, ISED, CE, PSE, UKCA
- Warranty: 1 year, handled by us in Kolkata
- Subscription: None. The app is free permanently.

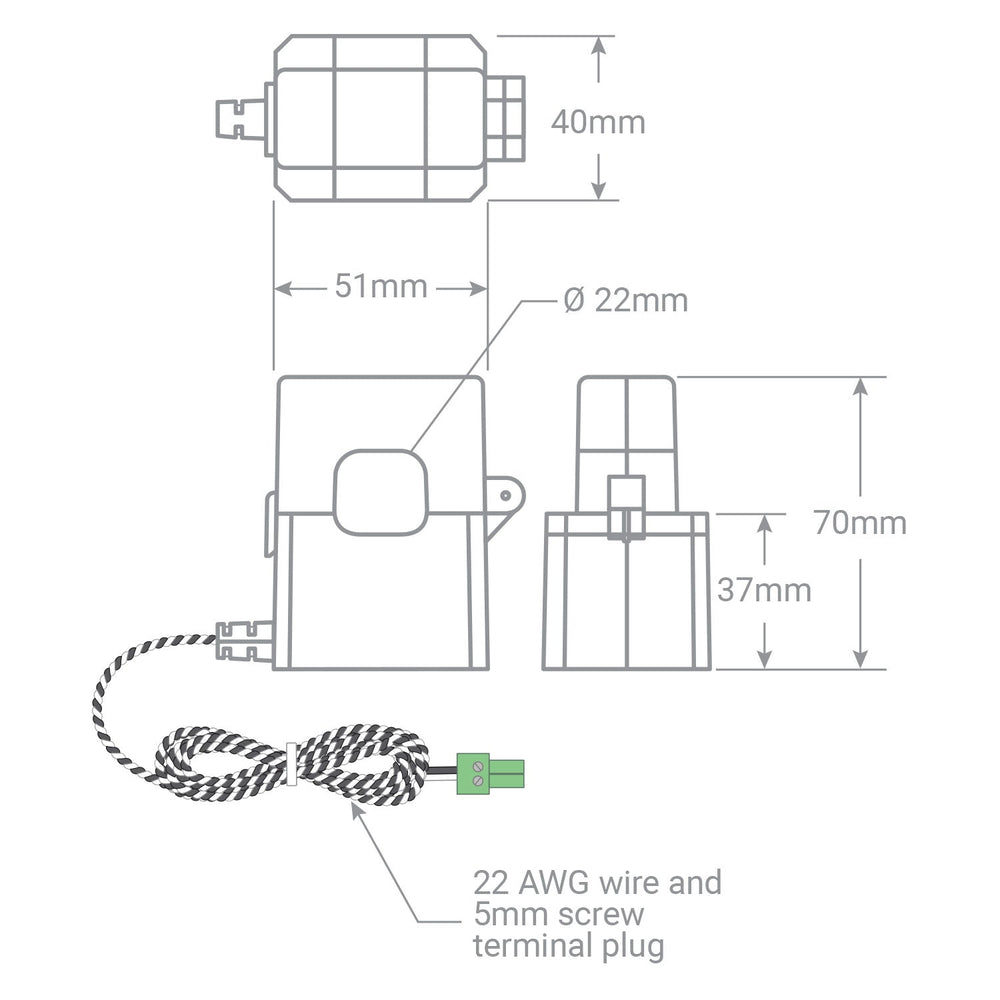

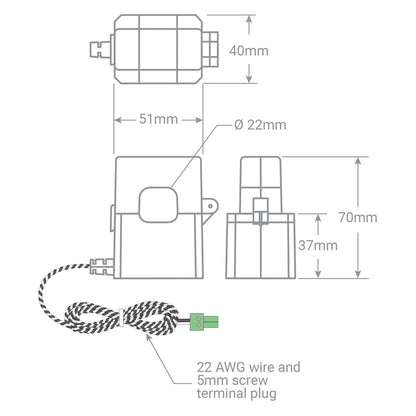

Check before you order: each phase conductor must pass through the sensor's 22 mm aperture, insulation included. Installation by a licensed electrician, approximately 45–90 minutes.
GST invoice with every order. Sold and supported in India by GenConnect Marketing Services LLP, Kolkata — authorised Emporia distributor. WhatsApp +91 98310 37220.
