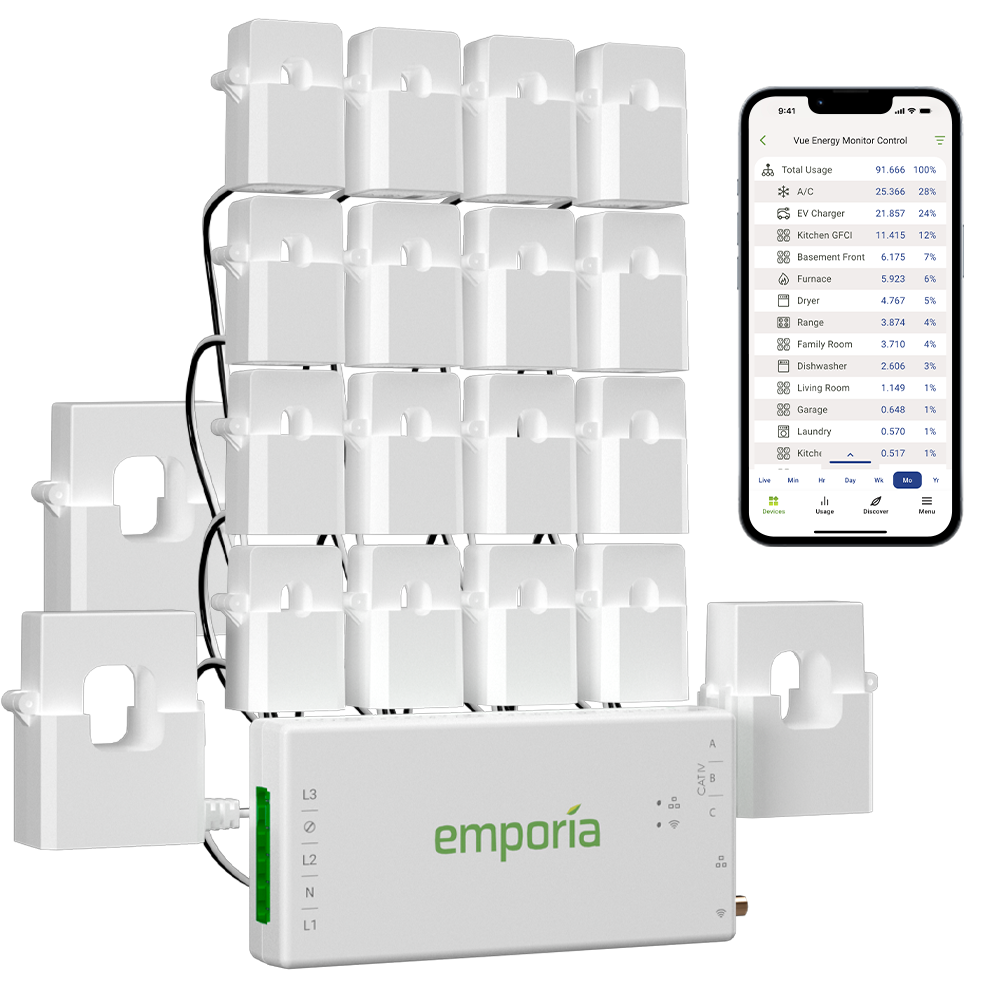

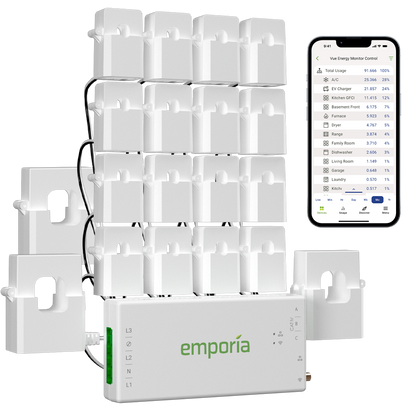

The full configuration. Three phases plus sixteen individual circuits — the maximum the monitor supports. For factories, hotels and buildings where every load needs its own line.
The complete picture
Sixteen 50 A sensors is the monitor's ceiling, and it is the configuration that turns the Vue from an interesting instrument into an operational tool.
With sixteen circuits separated you can attribute consumption by department, by floor, by production line or by tenant. You can see which shift costs what. You can watch a motor's draw climb over weeks and service it before it fails. You can settle a cost-allocation argument with data instead of estimates.
This is the model most factories and hotels end up wanting. Weighing it against the 8-circuit version? The deciding question: would you rather add sensors later at ₹1,200 each, plus a second electrician visit?
In the box
- Vue Gen3 energy monitor (EMV3-A)
- Three 200 A main CT sensors (22 mm aperture)
- Sixteen 50 A branch CT sensors (10 mm aperture)
- 4-wire voltage-sense harness
- Wi-Fi antenna and cable
- Extra wire and wire nuts
- Quick-start guide and circuit labels
Not included: Ethernet cable, DIN-rail mounting screws (2 × M3 with lock washers).
Key specifications
- Supported supply: 3-phase 4-wire “Y” (star, TN/TT) up to 415Y/240 VAC · Delta not supported
- Maximum per phase: 200 A (~144 kVA at 415 V)
- Accuracy: ±2% · 1-second live data
- Measurement category: CAT IV (200 A ports), CAT III (50 A ports)
- Network: Wi-Fi 2.4 GHz 802.11 b/g/n · Ethernet 10/100Base-T
- Size: 145 × 70 × 28 mm, DIN-rail mountable
- Solar / net metering: supported — branch sensors on the inverter output, bi-directional mode in the app
- Certifications: Safety UL 61010, UL 2808 · EMC FCC, ISED, CE, PSE, UKCA
- Warranty: 1 year, handled by us in Kolkata
- Subscription: None. The app is free permanently.
Check before you order: each phase conductor must pass through the main sensor's 22 mm aperture, insulation included; branch conductors through 10 mm. Installation by a licensed electrician.
GST invoice with every order. Sold and supported in India by GenConnect Marketing Services LLP, Kolkata — authorised Emporia distributor. WhatsApp +91 98310 37220.
