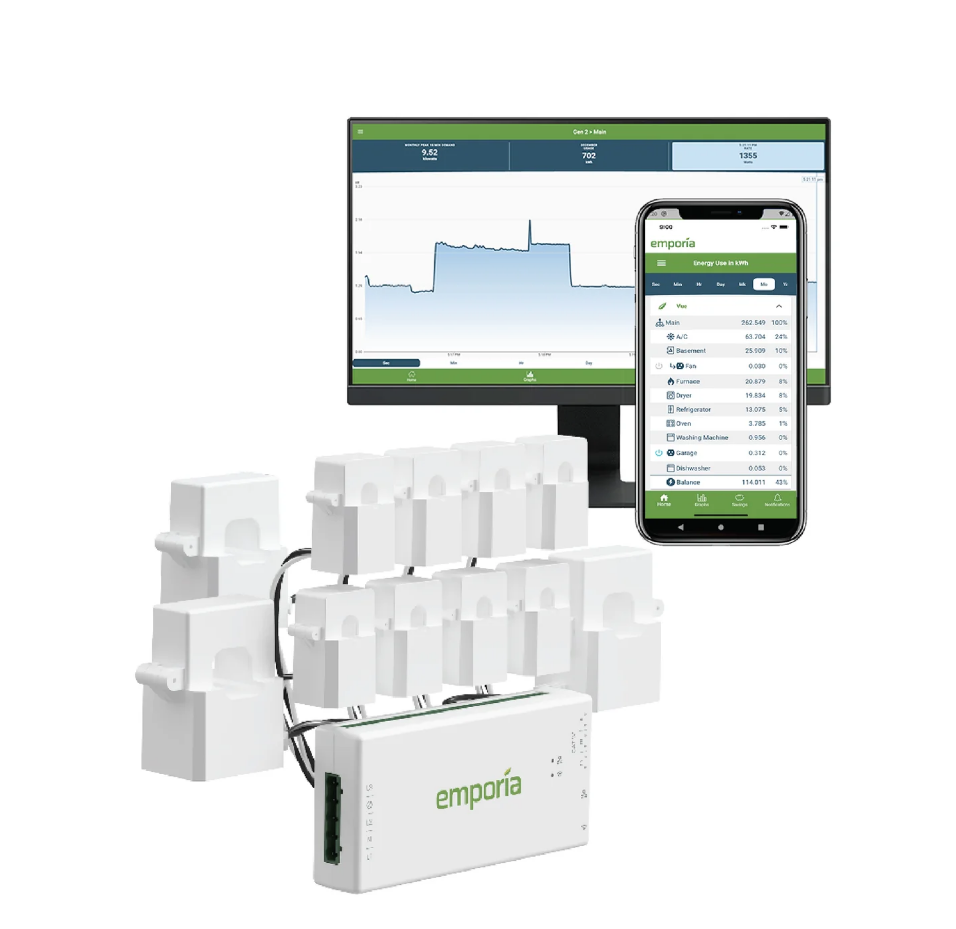

Everything in the base monitor, plus eight 50 A sensors — so you can see eight individual circuits separately, not just your total load.
What the eight sensors add
The base model tells you how much. These tell you what.

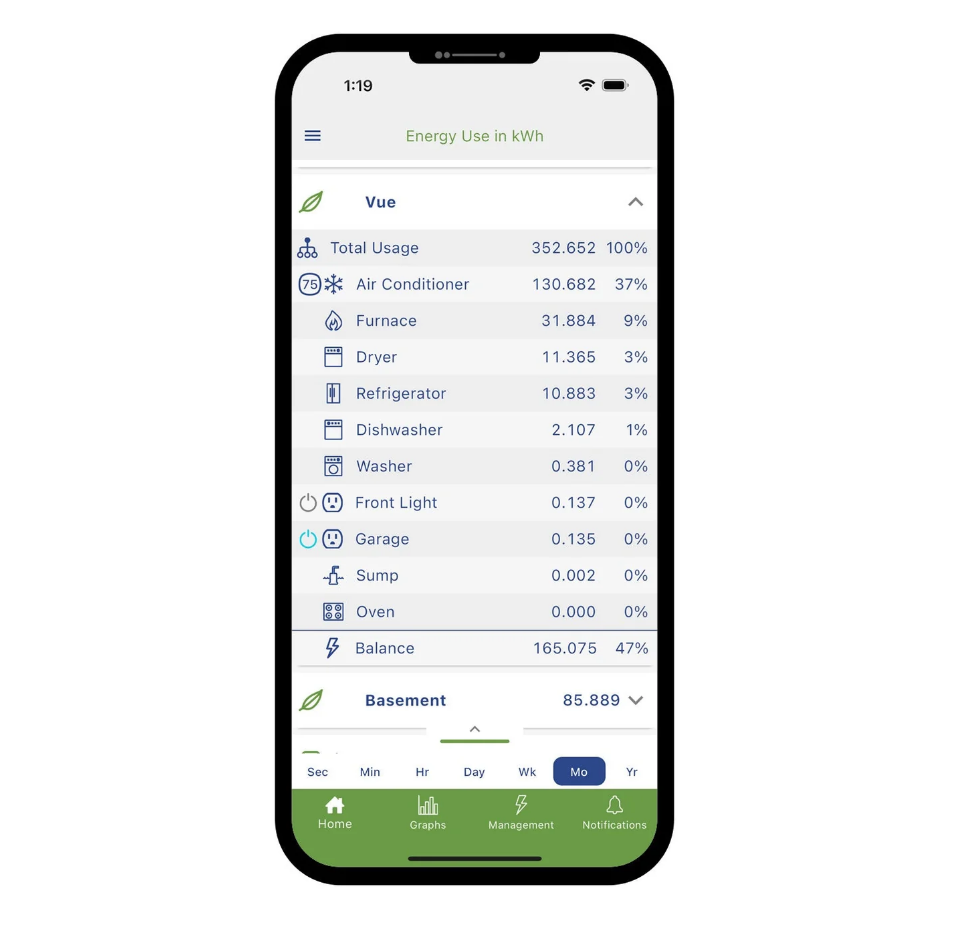

Eight 50 A clamp-on sensors go onto the branch circuits that matter most — the AC plant, the compressor, the pumps, the lift, the kitchen, the guest floor. Each appears as its own line in the app, with its own consumption history and its own alert threshold.
In most installations eight is the point where monitoring stops being interesting and starts being useful: enough to cover everything that draws serious power, with the remainder shown as “Balance”.
Choosing between 8 and 16: count the circuits you would actually act on. Under eight, take this model. Multiple production lines, floors or blocks to separate — take the 16-sensor model; retrofitting later costs more.

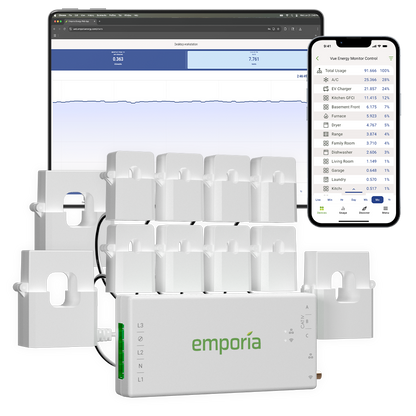

In the box

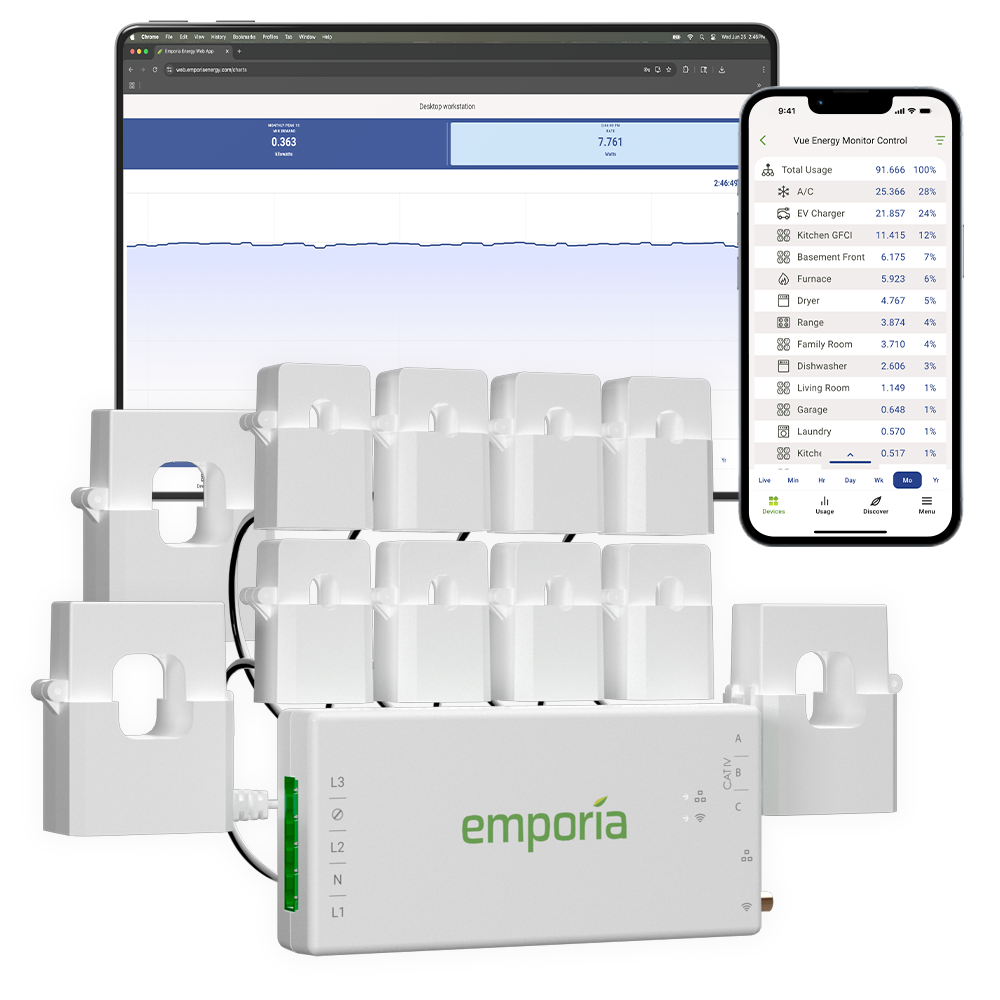

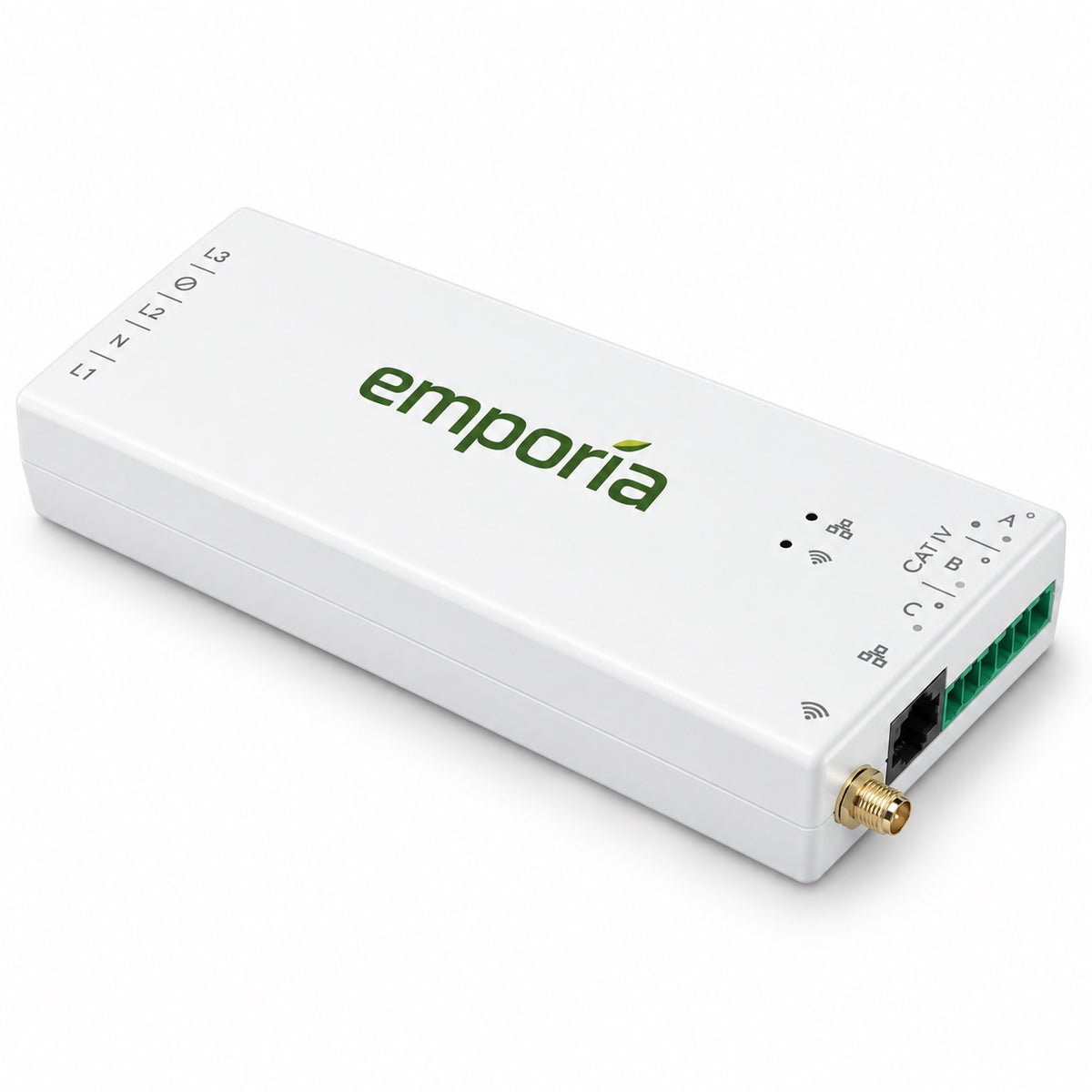

- Vue Gen3 energy monitor (EMV3-A)

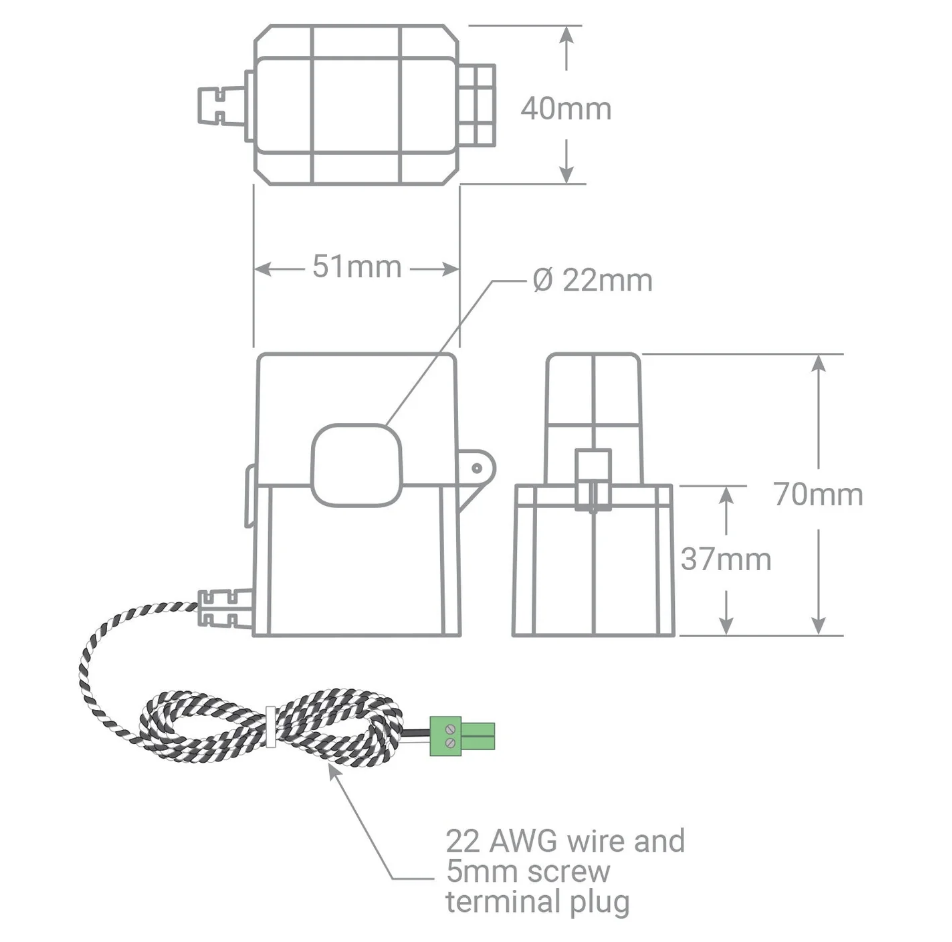

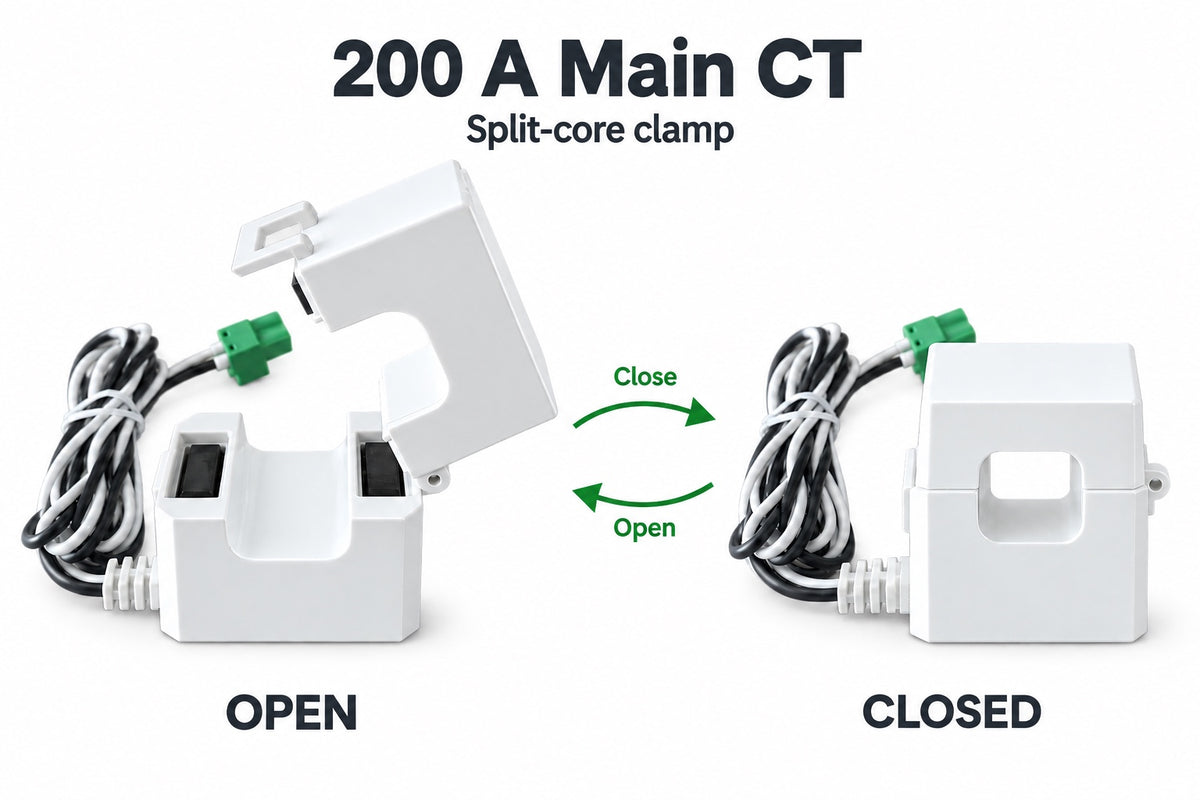

- Three 200 A main CT sensors (22 mm aperture)

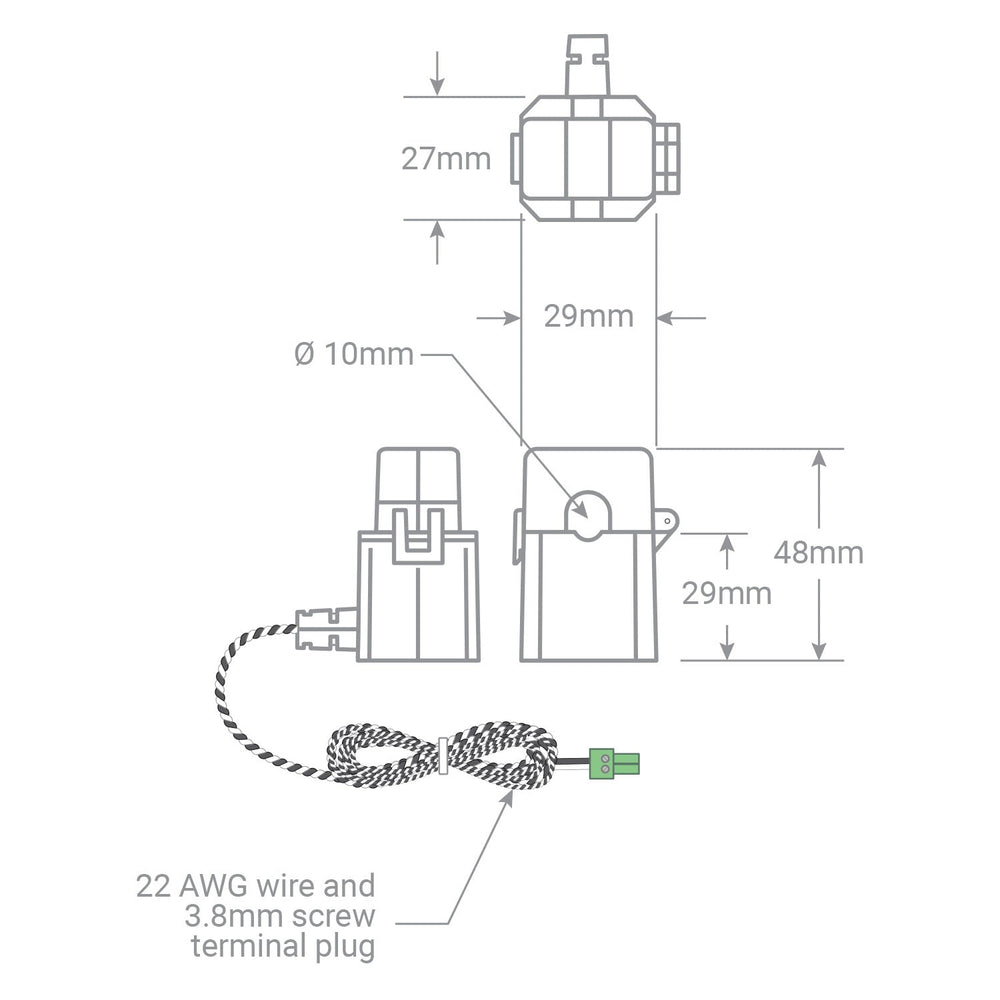

- Eight 50 A branch CT sensors (10 mm aperture)
- 4-wire voltage-sense harness
- Wi-Fi antenna and cable
- Extra wire and wire nuts
- Quick-start guide and circuit labels
Not included: Ethernet cable, DIN-rail mounting screws (2 × M3 with lock washers).
Key specifications
- Supported supply: 3-phase 4-wire “Y” (star, TN/TT) up to 415Y/240 VAC · Delta not supported
- Maximum per phase: 200 A (~144 kVA at 415 V)
- Accuracy: ±2% · 1-second live data
- Measurement category: CAT IV (200 A ports), CAT III (50 A ports)
- Network: Wi-Fi 2.4 GHz 802.11 b/g/n · Ethernet 10/100Base-T

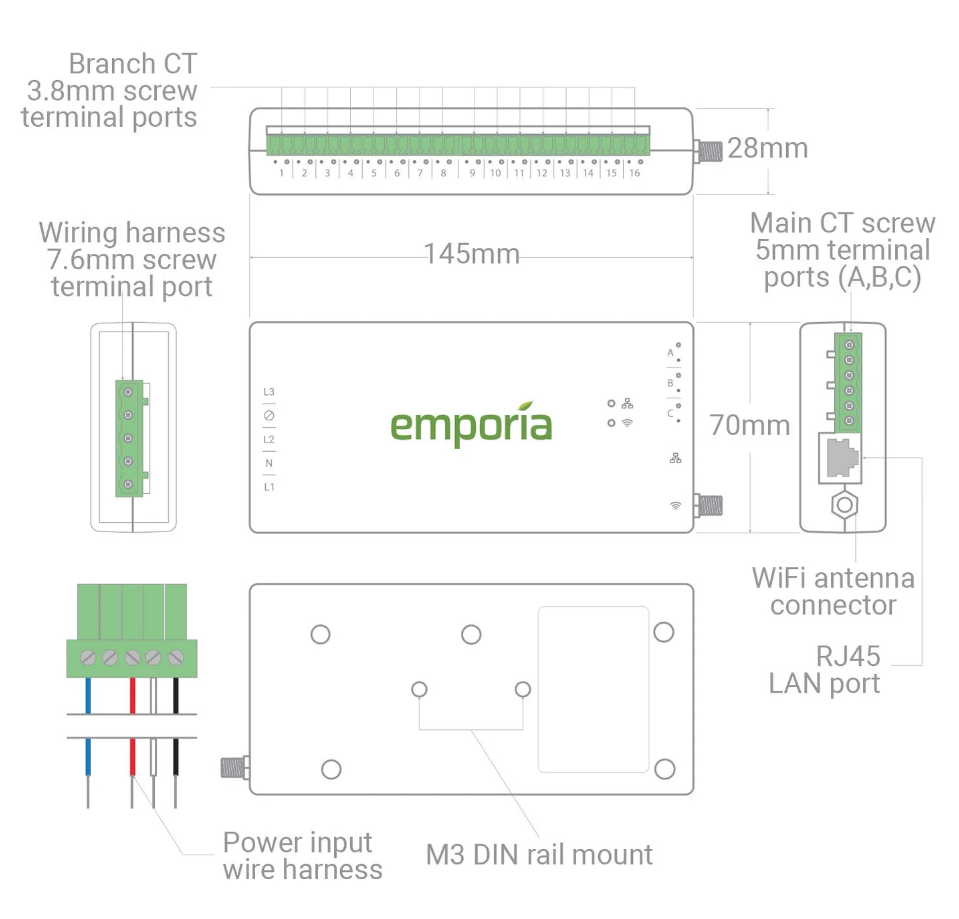

- Size: 145 × 70 × 28 mm, DIN-rail mountable
- Solar / net metering: supported — branch sensors on the inverter output, bi-directional mode in the app
- Certifications: Safety UL 61010, UL 2808 · EMC FCC, ISED, CE, PSE, UKCA
- Warranty: 1 year, handled by us in Kolkata
- Subscription: None. The app is free permanently.

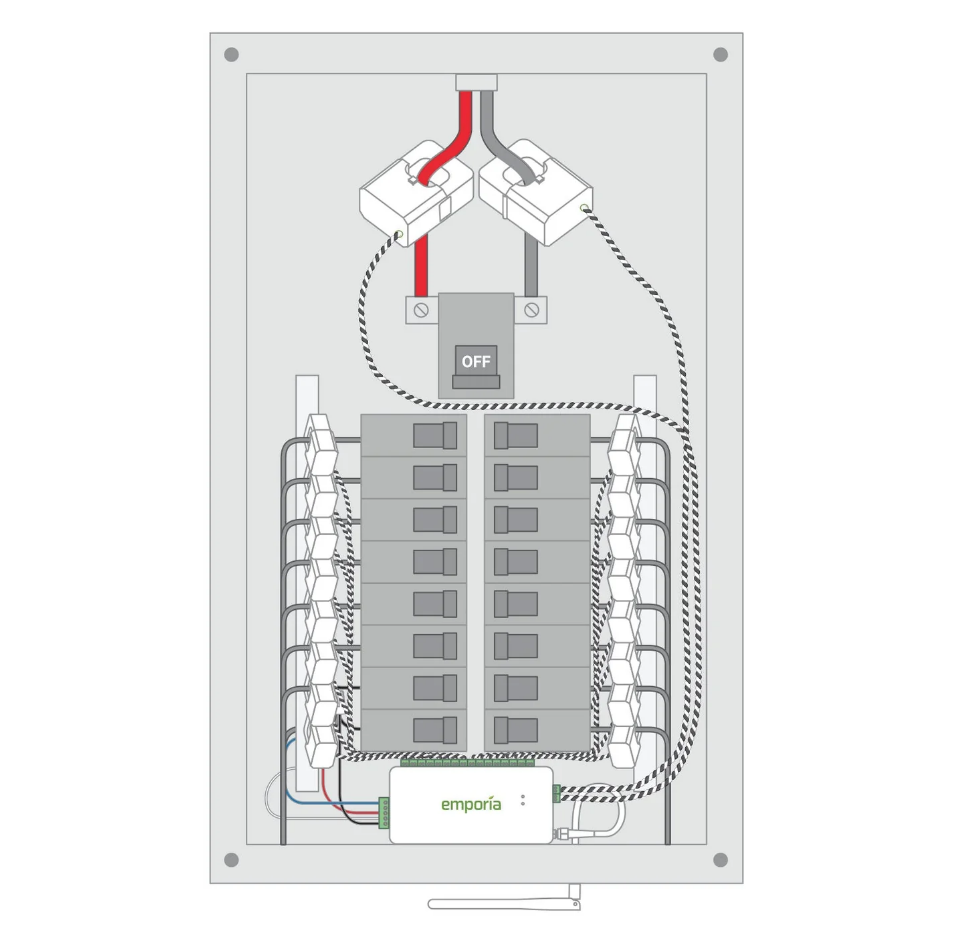

Check before you order: each phase conductor must pass through the main sensor's 22 mm aperture, insulation included; branch conductors through 10 mm. Installation by a licensed electrician.
GST invoice with every order. Sold and supported in India by GenConnect Marketing Services LLP, Kolkata — authorised Emporia distributor. WhatsApp +91 98310 37220.
